434MHz TS02EE Low Power Radio Module



ts01tx

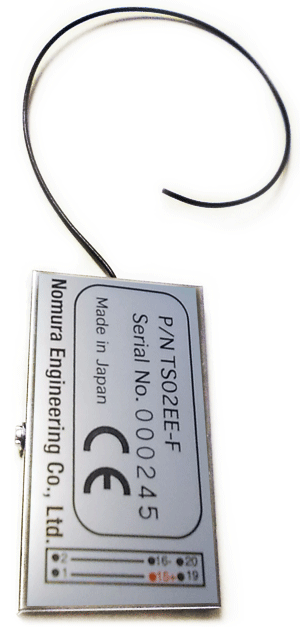

TS02EE-F
Wire Antenna

CE

Product Overview

  • Low Power Radio 434MHz 10mW
  • RoHS compliant
  • CE(R&TTE Directive)conformity certification
  • Smart interface
  • Low voltage, low power consumption
  • High receiver performance
  • 8 SW telecontrol firmware
     Inquire for Data communicaiton modem firmware.
     Consider LDM type for long distance communicaiton.
     Firmware is not rewritable.
     Please contact us for firmware customization.

Features

  • Frequency:434.0500~434.5375MHz
  • Channel:40 channels
  • Channel spacing:12.5kHz
  • Frequency stability:±3.5ppm(-20 to + 70degree C)
  • Data rate:1800bps(100〜200bps@LDM:Long Distance Mode)
  • Supply voltage:2.1V~7.0V
  • Supply current(at supply voltage 2.1~7.0V)    Shutdown:below 1μA
       Sleep mode: 20μA
       Standby mode: 1.5mA
  • 10mW in transmitting: 26mA
  • RF Power:10mW
  • Operating temperature range:-20~70℃(non condensing)
  • Dimension:53×30×6.5 mm(excluding protrusion)
  • Weight:15g
  • RoHS compliant
  • CE(R&TTE Directive)conformity certification
  • Attachment:2mm pitch 20 pin header (SMT or DIP type selectable)
