SRPC-RRS (Solar Rain Proof Case - Reader Relay Station)



SRPC-RRS

SRPC-RRS
(Reader Relay Station )

SRPC-SPS

SRPC-SPS
(Solar Power Supply)

SRPC-monitor

SRPC-monitor

Product Overview

  • SRPC-RRS can receive the ID information of the tag in the diversity scheme and transfer the data to various devices.
  • Communication distance is 2 km or more.
  • Built-in low-power radio module "TS02EJ-S mdm4LDM"
  • Rain-proof case
  • Charge capacity of the system of the battery and solar panel is 10Ah.
  • Relay function for data communication.
  • SRPC-RRS is also available as a power supply.
  • SRPC-SPS carries a solar panel, a storage battery, and a 429-MHz low-power radio module. Can be used as a power supply.

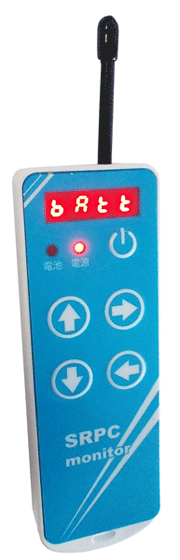

  • By using the SRPC-monitor, you can set the SRPC series and check the battery capacity.


Features

  • Frequency:429.2500~429.7375MHz
  • Channel:3 channels
  • Comm protocol:original protocol
  • Consumption current: 40mA
  • Output voltage:5.0V
  • RF Power:10mW
  • Operating temp.:-10~60℃(non condensing)

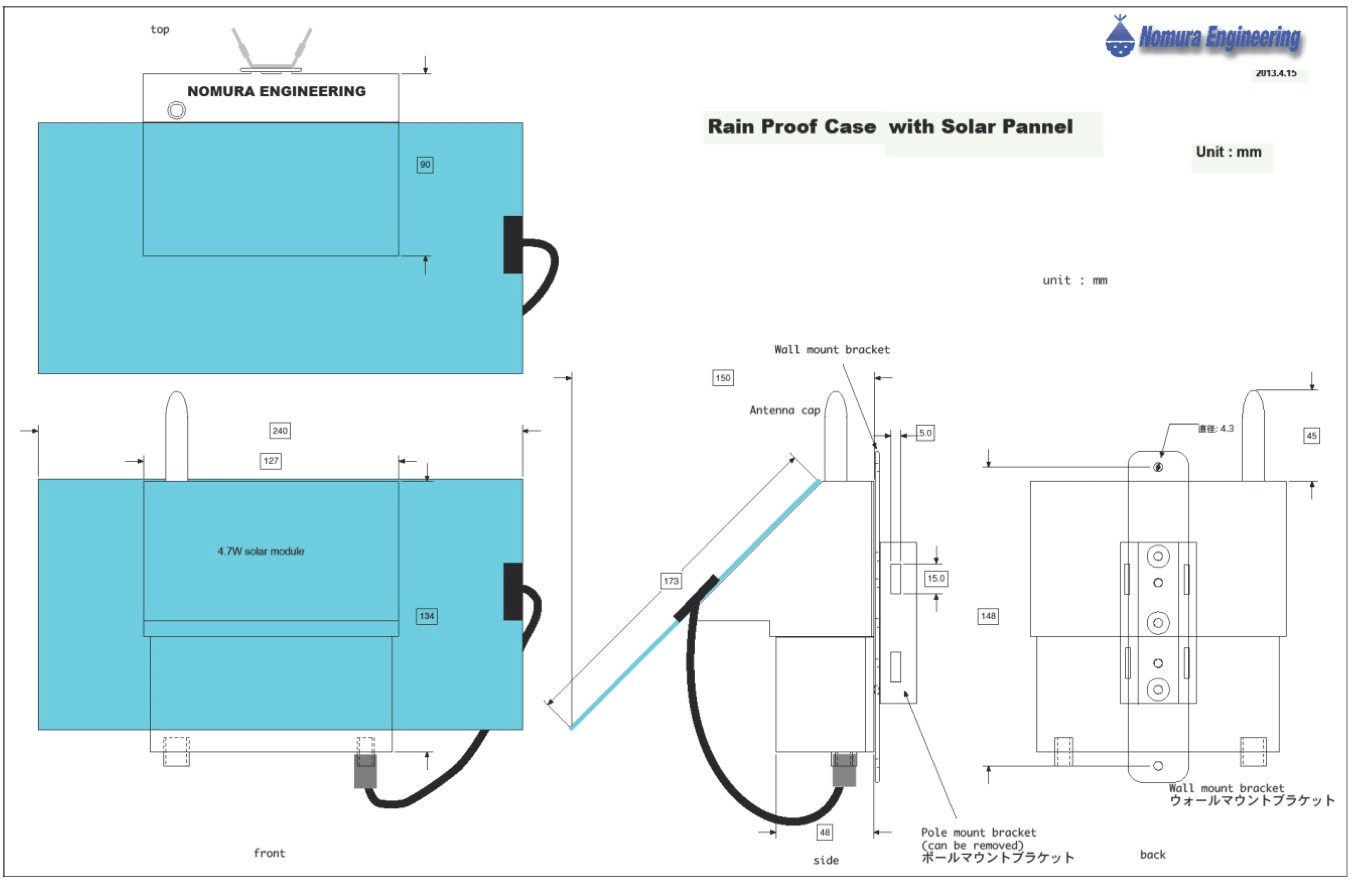

  • Size:dimensional outline drawing
  • Weight:1kg
  • Two types of battery.
  • Maximum output power:2000mW
  • tag:TS03 series(315MHz)

Application Example

  • Trekkers Traking System in Nepal
