429MHz TS02EJ Low Power Radio Module



ts01tx

TS02EJ-S
Helical Whip Antenna

ts01tx

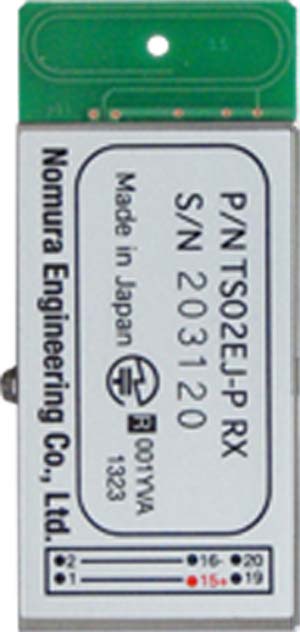

TS02EJ-P
PCB Antenna

ts01tx

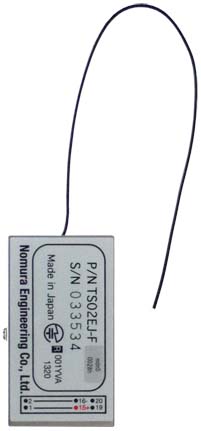

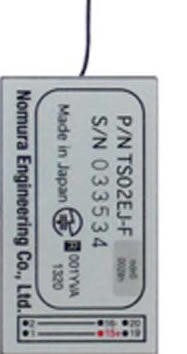

TS02EJ-F
Wire Antenna

Product Overview

  • Low Power Radio 429MHz 10mW
    (ARIB STD-T67 compliant)
  • 3 antennas
     TS02EJ-S: Helical whip antenna for consistent performance
     TS02EJ-P: Compact PCB antenna
     TS02EJ-F: Flexible wire antenna
  • Smart interface
  • Low voltage, low power consumption
  • High receiver performance
  • Extensive firmware selection
     Wealth of firmware is available. Select your firmware suitable for your requirements.
     Consider LDM type for long distance communicaiton.
     Firmware is not rewritable.
     Please contact us for firmware customization.
  • TS02EE
     RoHS compliant
     CE(R&TTE Directive)conformity certification CE
     For details, please click here and see the prduct page.

Features

  • Frequency:429.2500~429.7375MHz
  • Channel:40 channels
  • Channel spacing:12.5kHz
  • Comm protocol:original protocol
  • Frequency deviation:within ±3.5ppm
  • Supply current(at supply voltage 2.1~7.0V)    Shutdown:below 1μA
       Sleep mode: 20μA
       Stand-by: 1.5mA
  • 10mW in transmitting: 26mA
  • Radio transmission speed:1,800bps、LDM type:100~200bps
  • Supply voltage:2.1V~7.0V
  • RF Power:10mW
  • Operating temp.:-20~70℃(non condensing)
  • Size:53×30×6.5 mm(excluding protrusion)
  • Weight:15g
  • Compliance:ARIB STD-T67
  • Already certificed、RoHS compliant
  • TS02EE series :
     CE(R&TTE Directive)conformity certification
  • Attachment:2mm pitch 20 pin header (SMT or DIP type selectable)

TS02EJ firmware

For further information, please see the individual product page below.
( --- under construction --- )
Part number is different by transmitter/receiver, master/slave.

Firmware
For details
8 SW telecontrol
    (Unidirection)
TS02EJ-x 8sw TX module
TS02EJ-x RX 8sw RX module
8 SW telecontrol
    (Unidirection/LDM)
TS02EJ-x 8swLDM TX module
TS02EJ-x RX 8swLDM RX module
8 SW telecontrol
    (Loopback)
TS02EJ-x 8sw LM (master)
TS02EJ-x RX 8sw LS (slave)
8 SW telecontrol
    (Lookback/LDM)
TS02EJ-x 8swLDM LM (master)
TS02EJ-x RX 8swLDM LS (slave)
Data communicaiton modem TS02EJ-x mdm4
Data communication modem
    (LDM)

TS02EJ-x mdm4LDM

Data communicaiton
    Shuttle type

TS02EJ-x mdm5
